Protect what you catch and preserve what you deliver. Havmek seafood conveyor systems are built for continuous washdown environments, reliable product handling, and long-term performance across infeed, processing, glazing, IQF freezing, and packing operations — for shrimp, salmon, whitefish, squid, and fillet lines. ISO 9001, ISO 14001, and ISO 45001 certified.
• Belt speed: 0.2 to 1.0 m/s
• Belt width: 300 to 1200 mm
• Adjustable incline / decline angle for layout fit
• Stable product handling during elevation changes
• SS304 / SS316 / SS316L frame for wash down environments
• Modular or cleated belt options for grip and drainage
• Open frame structure for easy cleaning and access
• Compatible with glazing, cutting, IQF, and packing lines
• Side guards prevent spillage during transfer
• Can be configured in multiple widths (300–1200 mm)
• Belt speed: 0.01 to 0.1 m/s
• Vibration frequency controlled for smooth separation
• Maintains product integrity during handling
• Ensures steady feed into downstream inspection equipment
• SS304, SS316 or SS316L construction
• Sanitary slotted or perforated deck options
• Designed for wash down and low maintenance
• Ideal for stages before grading glazing and freezing
• Widths available from 0.1 to 1.5 m
• Supports continuous line pacing and flow buffering

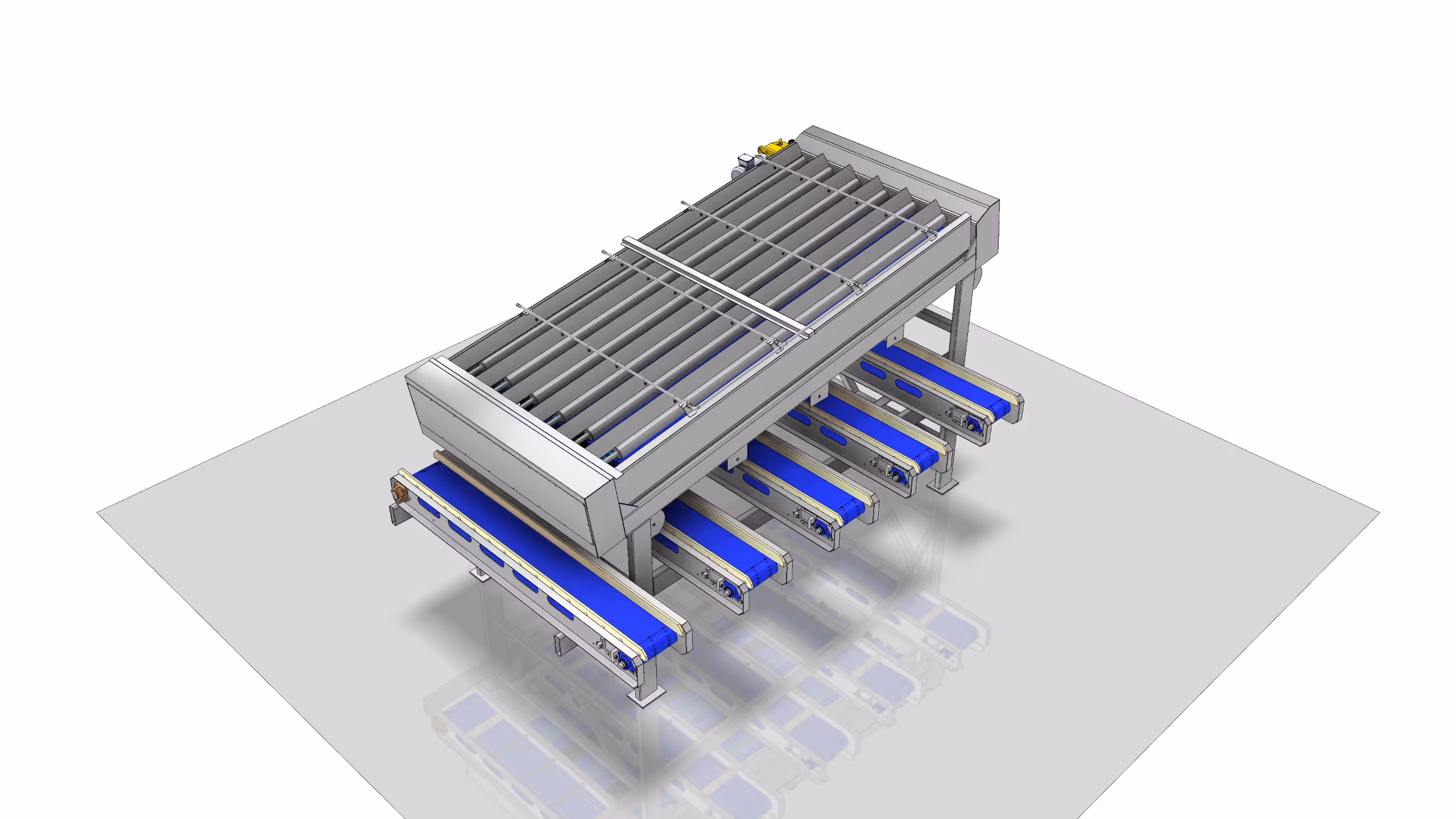

• Belt speed: 0.2 to 1.0 m/s
• Multi grade discharge layout for product classification
• Controlled flow ensures accurate sorting
• Stable handling for wet and delicate seafood
• SS304 SS316 or SS316L structure
• PU PVC or cleated belt options for grip and hold
• Open access for cleaning and sanitation
• Works before IQF freezing packing or portioning
• Adjustable grade chute and divider layouts
• Belt width configurable from 300 to 1200 mm
• Belt speed: 0.2 to 1.0 m/s
• Belt width: 300 to 1200 mm
• Adjustable incline / decline angle for layout fit
• Stable product handling during elevation changes
• SS304 / SS316 / SS316L frame for wash down environments
• Modular or cleated belt options for grip and drainage
• Open frame structure for easy cleaning and access
• Compatible with glazing, cutting, IQF, and packing lines
• Side guards prevent spillage during transfer
• Can be configured in multiple widths (300–1200 mm)
• Belt speed: 0.1 to 0.3 m/s
• Controlled immersion depth and holding duration
• Smooth handling to maintain product orientation
• Suitable for glazing or washing processes
• SS304 SS316 or SS316L build
• Modular or wire mesh belts for drainage
• Wash down ready open structure
• Interfaces directly with glazing tanks and IQF freezers
• Adjustable tank entry and exit elevation
• Belt widths from 300 to 1200 mm
• Belt speed: 0.1 to 0.3 m/s
Controlled product transfer across stations
• Smooth belt tracking for continuous movement
• Stable handling for chilled and wet product
• SS304 SS316 or SS316L frame
• Modular or mesh belt options
• Wash down ready
• Interfaces directly with glazing tanks and IQF freezers
• Adjustable tank entry and exit elevation
• Belt widths from 300 to 1200 mm
• Belt speed: 0.1 to 0.3 m/s
• Maintains product spacing
• Supports variable upstream and downstream flow
• SS304 SS316 or SS316L frame
• Food grade belts
• Open structure for wash down
• Used before packing inspection or staging zones
• Configurable conveyor length
• Aligns with continuous processing lines
• Belt speed: 0.1 to 0.3 m/s

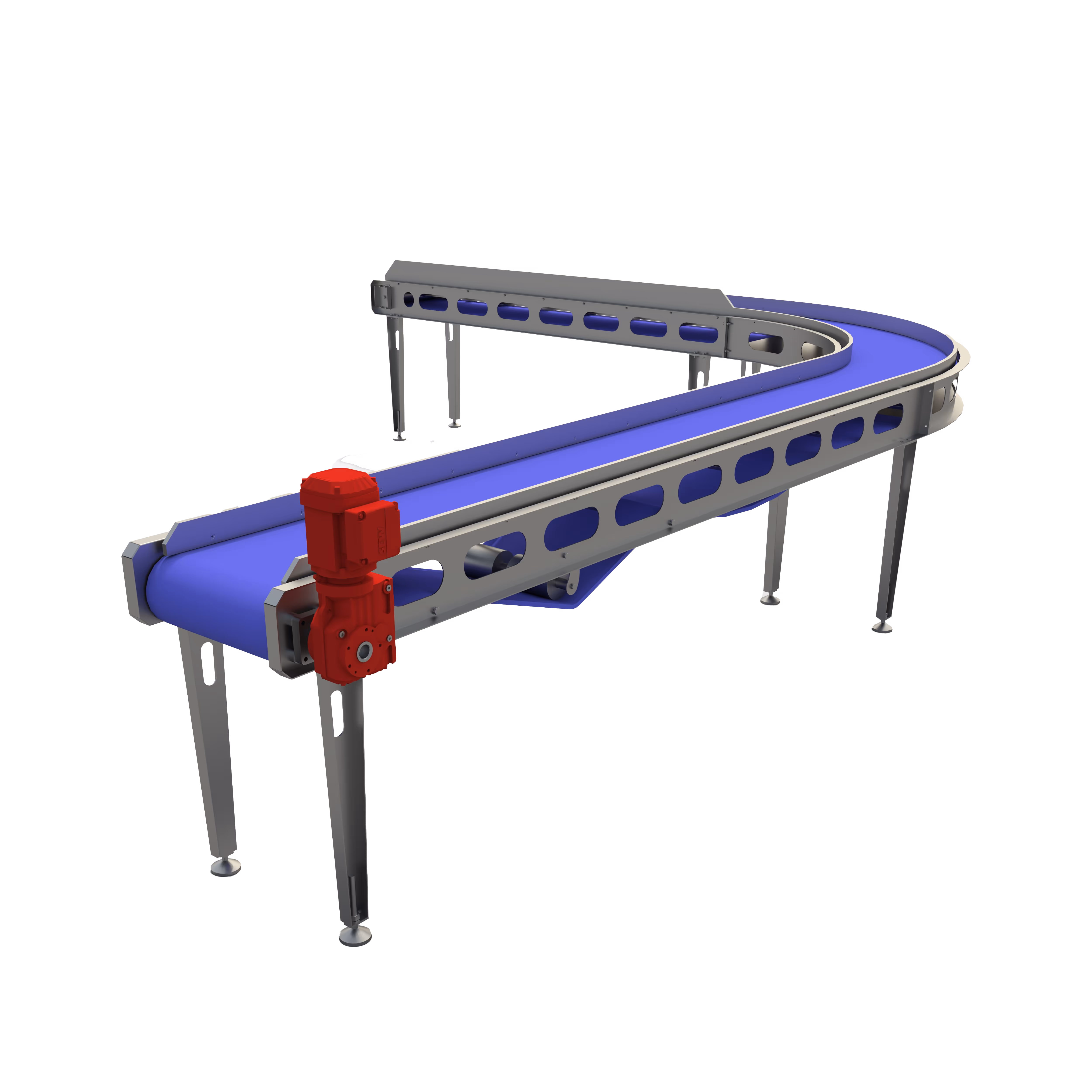

• Smooth belt tracking for continuous movement
• Stable handling for chilled and wet product
• SS304 SS316 or SS316L frame
• Modular or mesh belt options
• Wash down ready
• Connects inspection packing and processing areas
• Belt width options: 300 to 1200 mm
• Adaptable to existing line geometry
• Belt speed: 0.01–0.2 m/s
• Smooth guided belt path maintains product orientation
• Stable elevation between multiple processing levels
• Materials: SS304 / SS316 / SS316L
• Belt options: Modular plastic or wire mesh
• Wash-down ready, low-maintenance design
• Ideal pre-stage before glazing, grading, or freezing
• Enables steady product feed and flow buffering
Yes. All Havmek seafood conveyors are fabricated from SS304/SS316/SS316L with modular food-grade belts, hygienic open-frame construction, and sloped drainage channels. They are designed for continuous washdown and sanitation cycles in cold, wet seafood processing environments — compliant with EHEDG hygienic design guidelines.
Havmek offers modular plastic, PU, cleated, flighted, wire mesh, and scooped belt options. Each belt type is selected based on product characteristics — ensuring gentle handling of delicate seafood such as prawns and scallops while maintaining grip, drainage, and hygiene compliance throughout the line.
Yes. Havmek conveyors offer modular plastic, PU, cleated, flighted, wire mesh, and scooped belt options selected to match product type — shrimp, fillets, squid rings, or breaded seafood. Gentle handling is maintained at all transfer points to preserve product integrity, texture, and presentation.
Yes. Havmek seafood conveyor systems meet CE marking requirements and are designed to EU food safety and machinery directive standards — making them suitable for export-certified processing plants in Norway, UK, France, Spain, and Portugal.
The overall timeline depends on the level of customization, site requirements, and project depth. Once the specifications are confirmed, our engineering team begins design and fabrication, followed by detailed testing and final commissioning. For clarity on your specific project, our expert consultant will guide you through an accurate schedule.
You can begin by contacting our team or writing to us at info@havmek.com and sharing your process requirements, layout details, and production goals. Once we understand your needs, we start the design and modeling process and outline the next steps for your project.
Customers receive structured progress updates at regular intervals, including biweekly and monthly reports with photos, design checkpoints, and milestone summaries. This ensures full visibility throughout design, fabrication, and installation.
Yes. During the early requirement discussions, Havmek factors in possible future needs such as capacity growth, product changes, or line expansion. This allows the system to support long-term scalability and remain compatible with future upgrades.
Havmek delivers custom built, cost efficient and certified solutions for seafood processing, engineered with strict hygiene standards and a strong focus on consistent product quality. From processing to final packaging, we help you optimize operations, reduce waste, and maximize profitability.
Havmek provides glazing systems, conveying solutions, freezing equipment, grading units, and integrated end-of-line handling. All systems are designed to match process flow, layout conditions, and capacity requirements. Discover our other offerings
Standard OEMs sell fixed models. Havmek creates machines that are engineered to fit the customer’s layout, capacity, product type, and workflow. We solve challenges related to space limitations, nonstandard product dimensions, slow ROI, and integration complexity which traditional OEM machines cannot address.
Havmek manages the complete cycle including discovery, design, simulation, fabrication, testing, integration, commissioning, and long term support. All machines are designed using engineering tools and manufactured in ISO certified facilities.
Havmek provides 24X7 remote assistance, onsite support within 48 hours in most regions, preventive maintenance, spare parts availability, and long term service programs. This ensures consistent uptime and reliable long term performance.

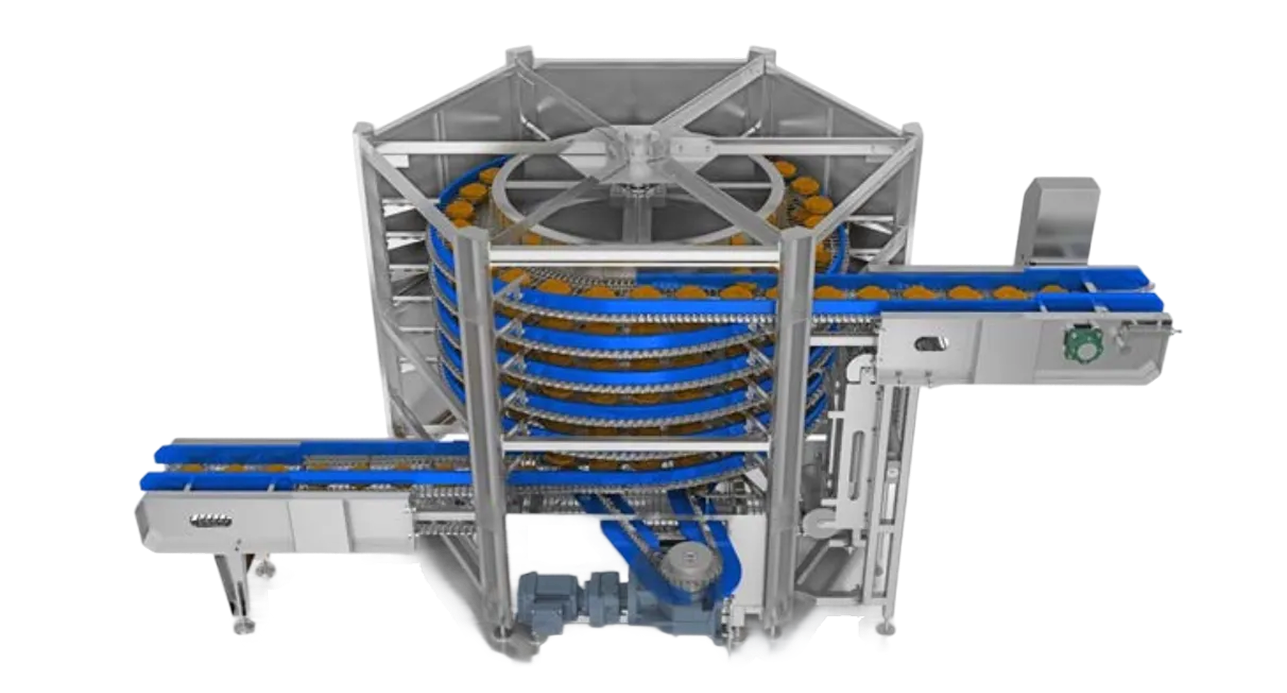

Havmek supplies incline/decline conveyors, separating conveyors, belt grading conveyors, size grading conveyors, dip tank conveyors, transportation conveyors, holding conveyors, transfer conveyors, and spiral conveyors — covering the full processing line from infeed to packing for seafood facilities.
Yes. Havmek conveyor systems are designed to interface directly with Havmek IQF Spiral Freezers, dip glazers, spray glazers, and cascade glazing systems. Integration is engineered at the plant layout stage to ensure smooth transitions, consistent line speed, and minimal product drop points between equipment modules.
Havmek uses SS304 for general frames, SS316 for chloride-exposed environments, and SS316L (low-carbon) for welded food-contact components. Material selection is based on product type, sanitation chemical compatibility, and facility hygiene classification.
